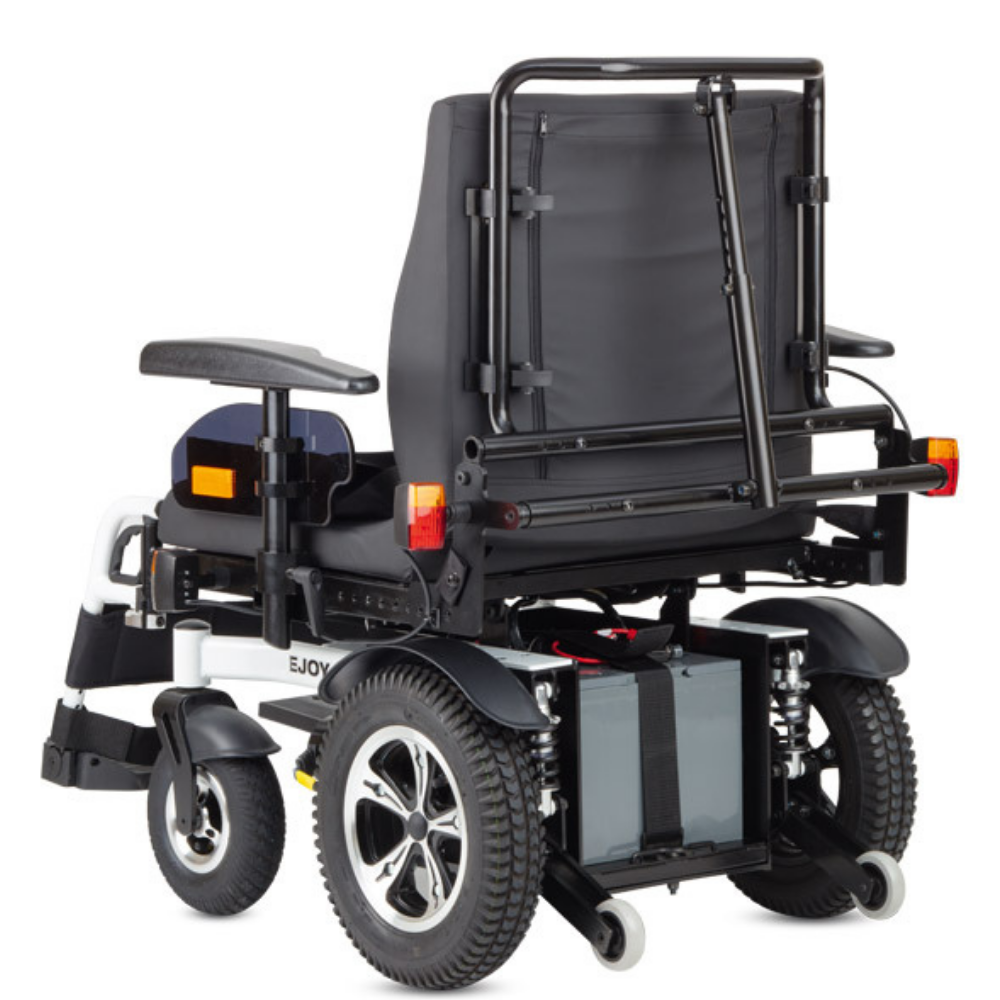

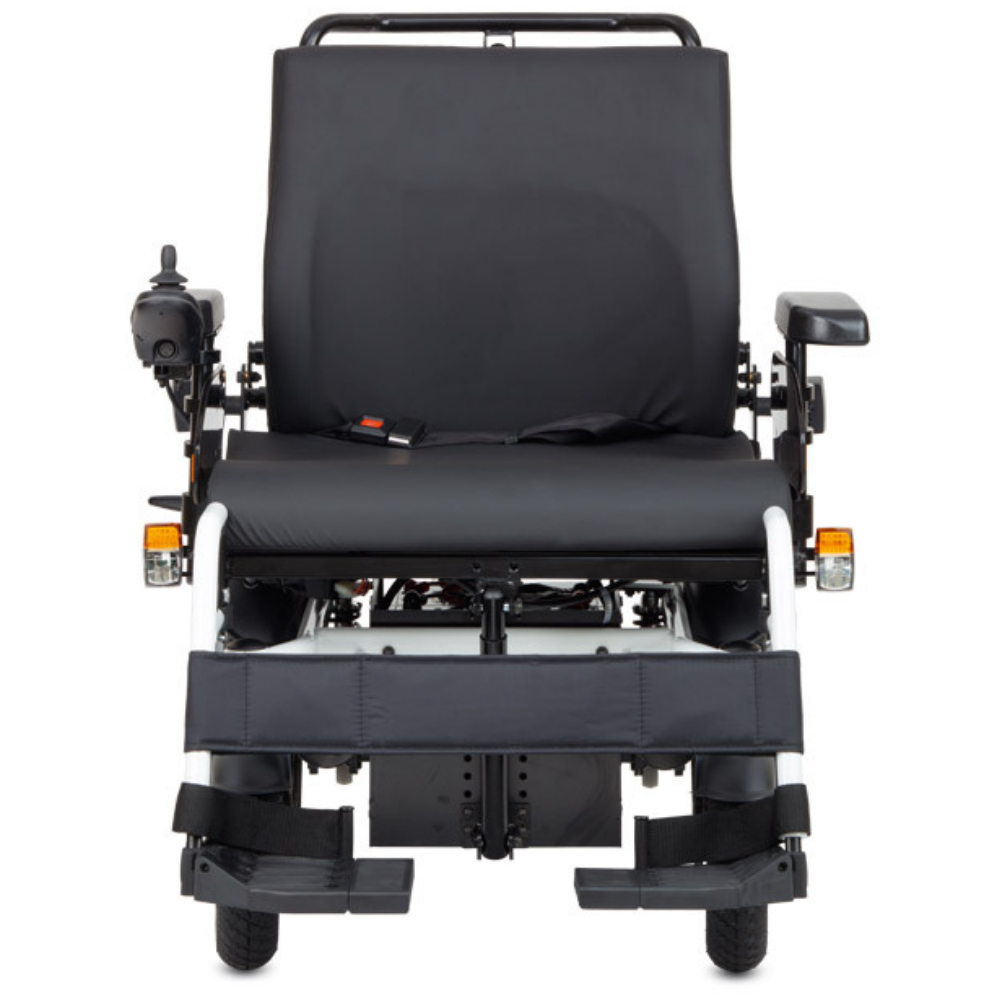

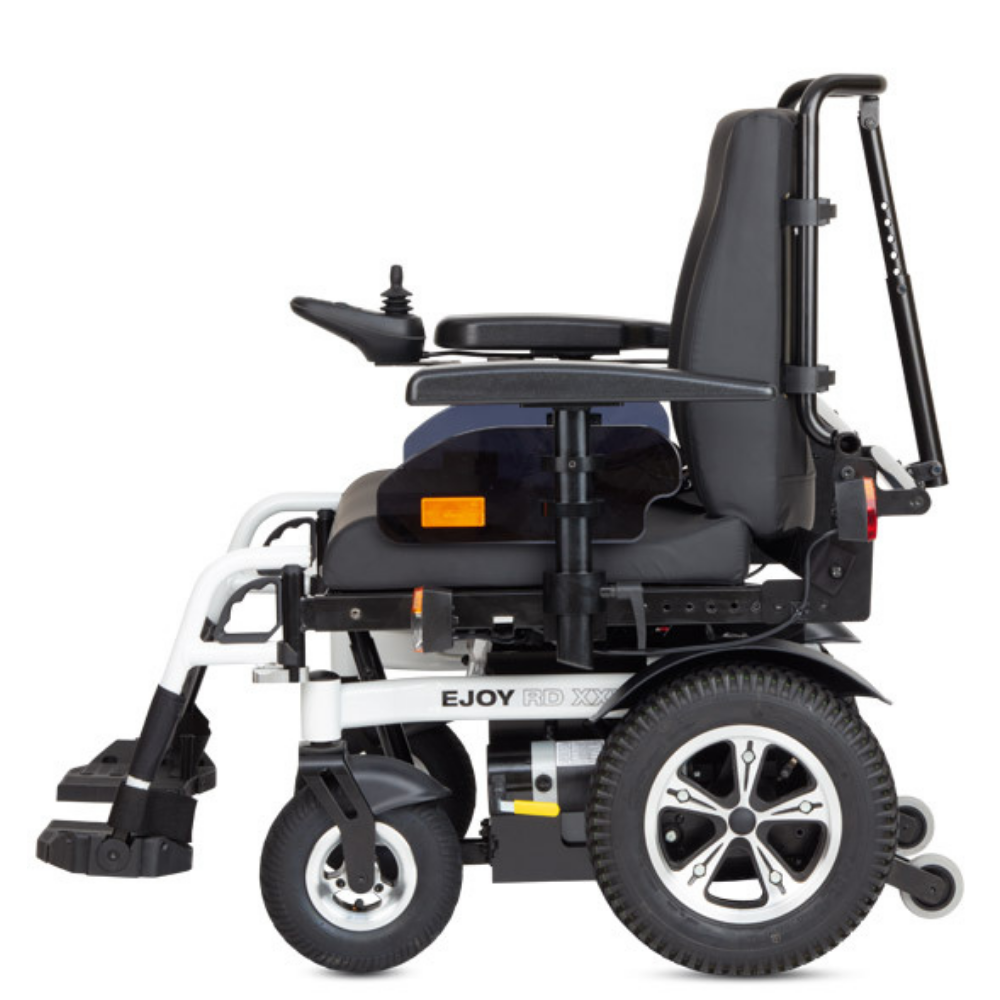

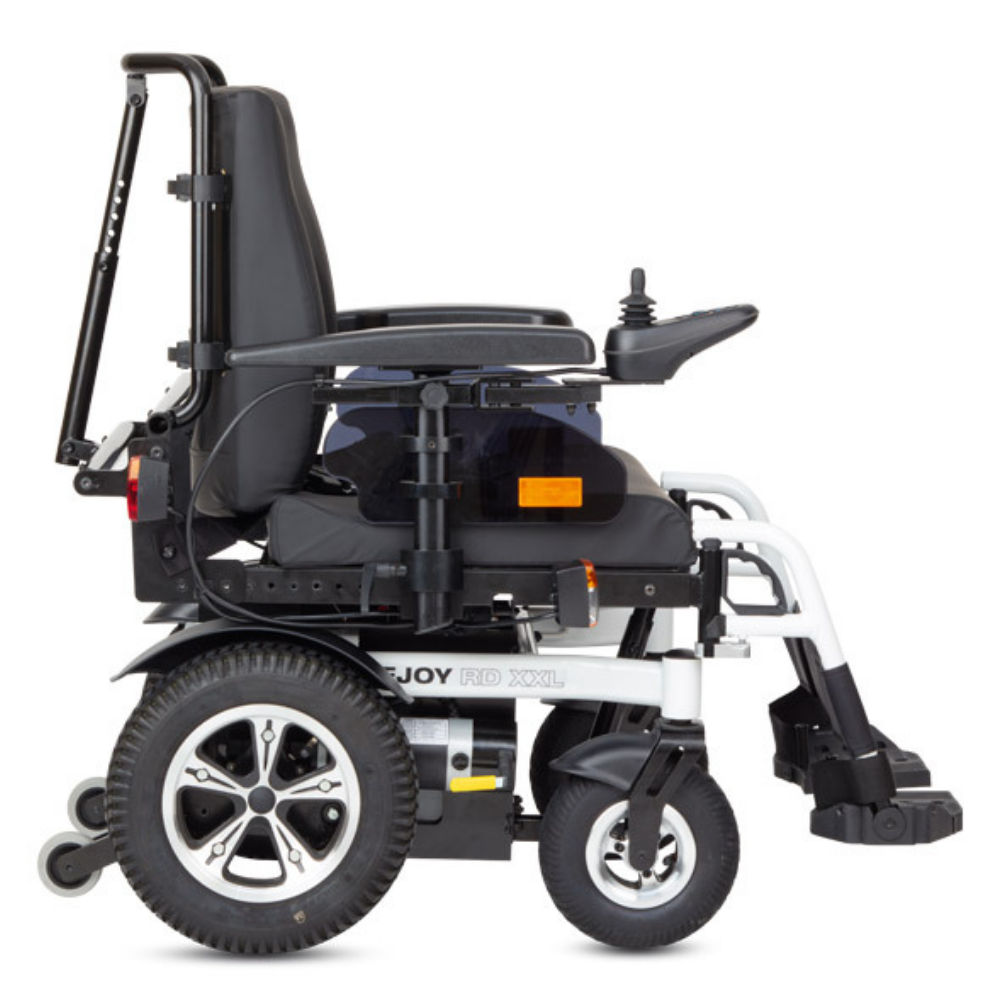

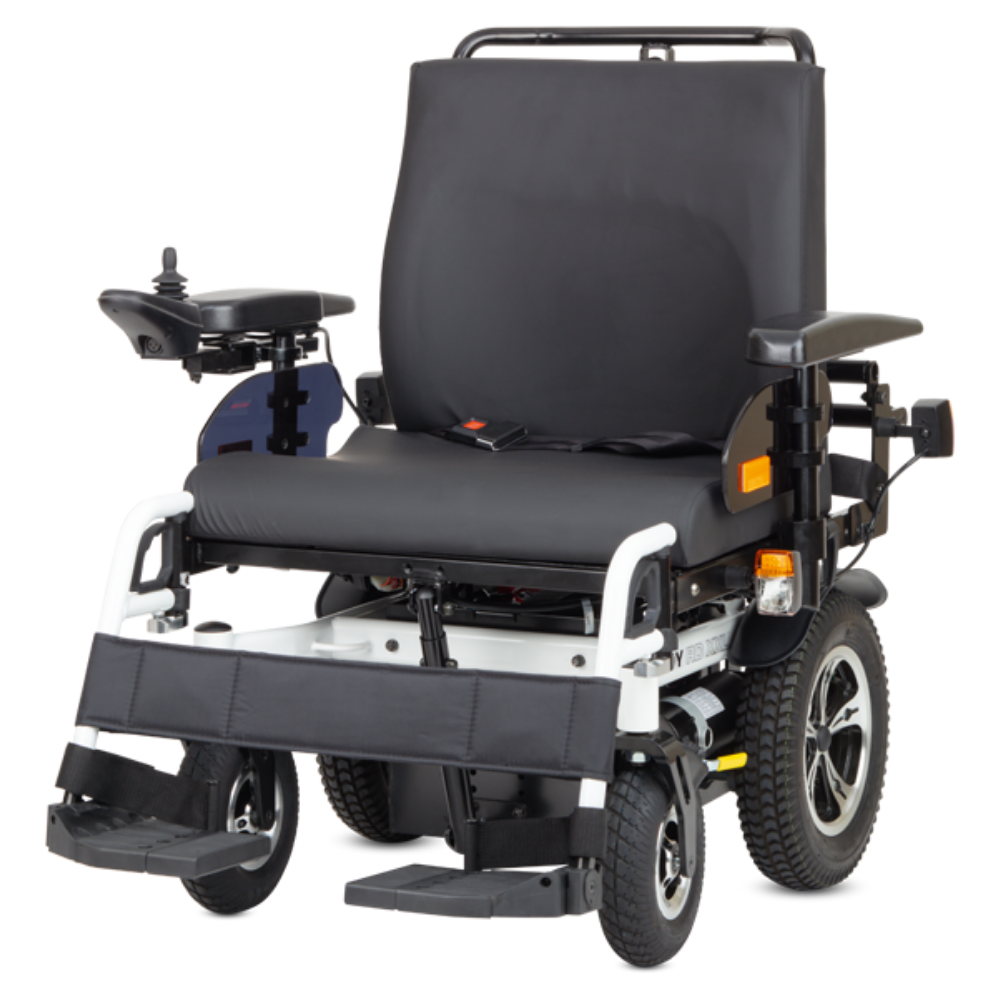

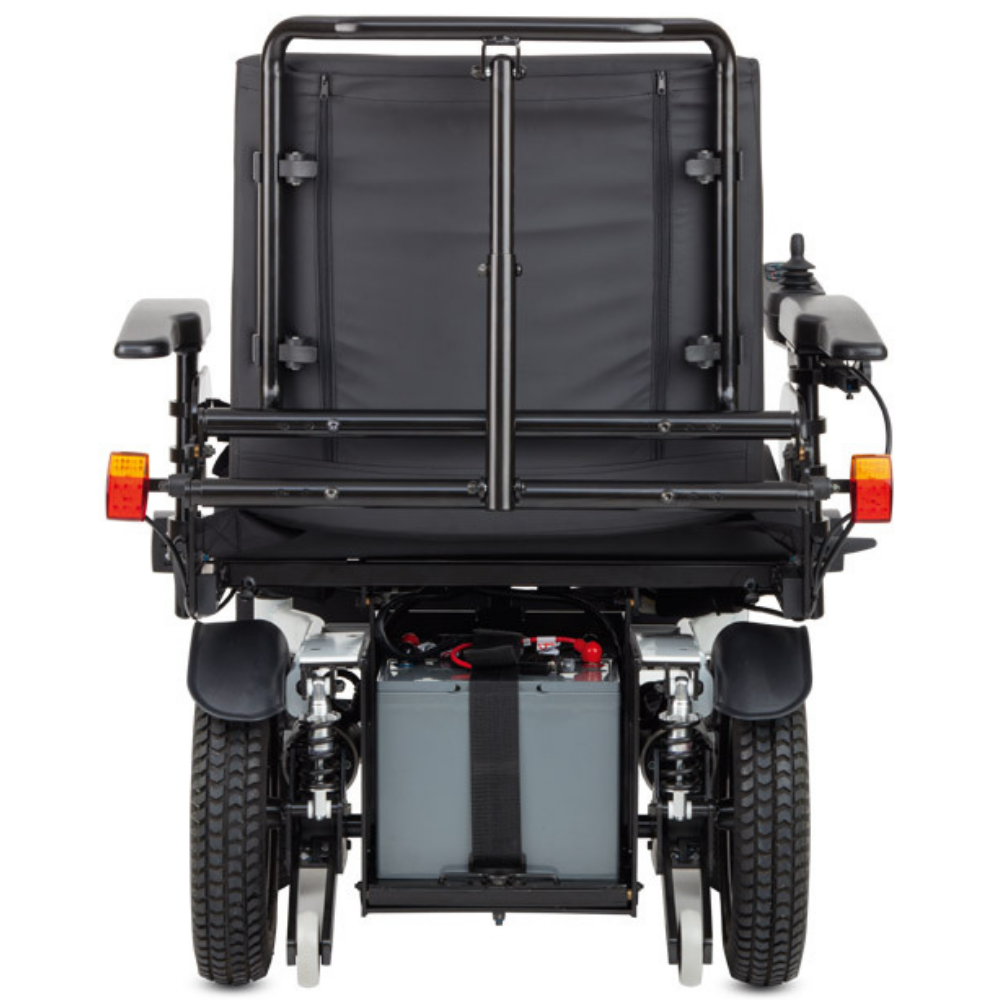

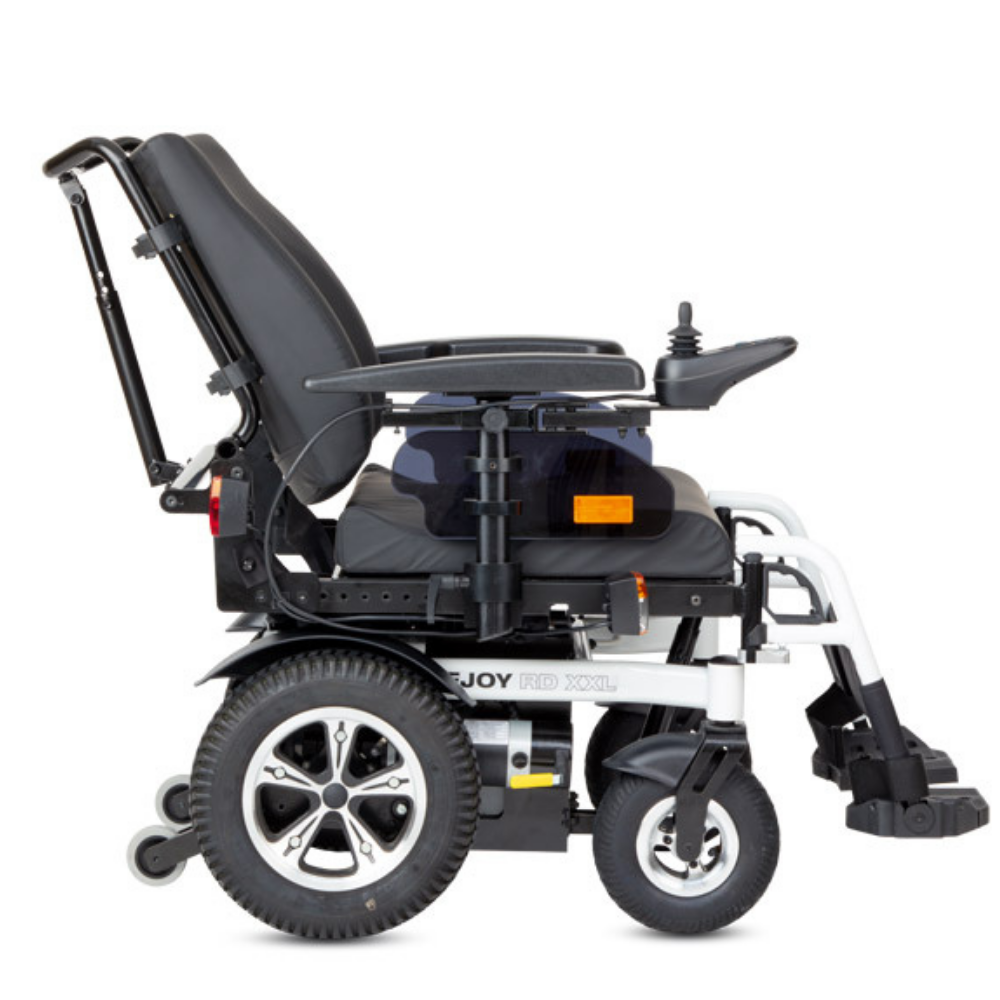

Ejoy RD XXL – Electric Heavy-Duty Rear-Wheel Drive Wheelchair
Once your order is received, we will contact you by phone to discuss the order details with you.
- The Ejoy RD XXL is a powerful heavy-duty electric wheelchair with rear-wheel drive, offering high stability especially for outdoor use.
- Despite its robust construction, it remains highly maneuverable indoors and fits into many elevators due to its width.
- The low seat height allows for comfortable sitting at a table, for example in a restaurant or at home.
- With a range of approximately 35 km, the wheelchair is ideal for longer daily commutes.
- It reliably travels at 6 km/h and masters inclines up to 8° (14%) as well as obstacles up to 5 cm.
- The high load capacity of up to 200 kg offers maximum safety for heavy-duty requirements.

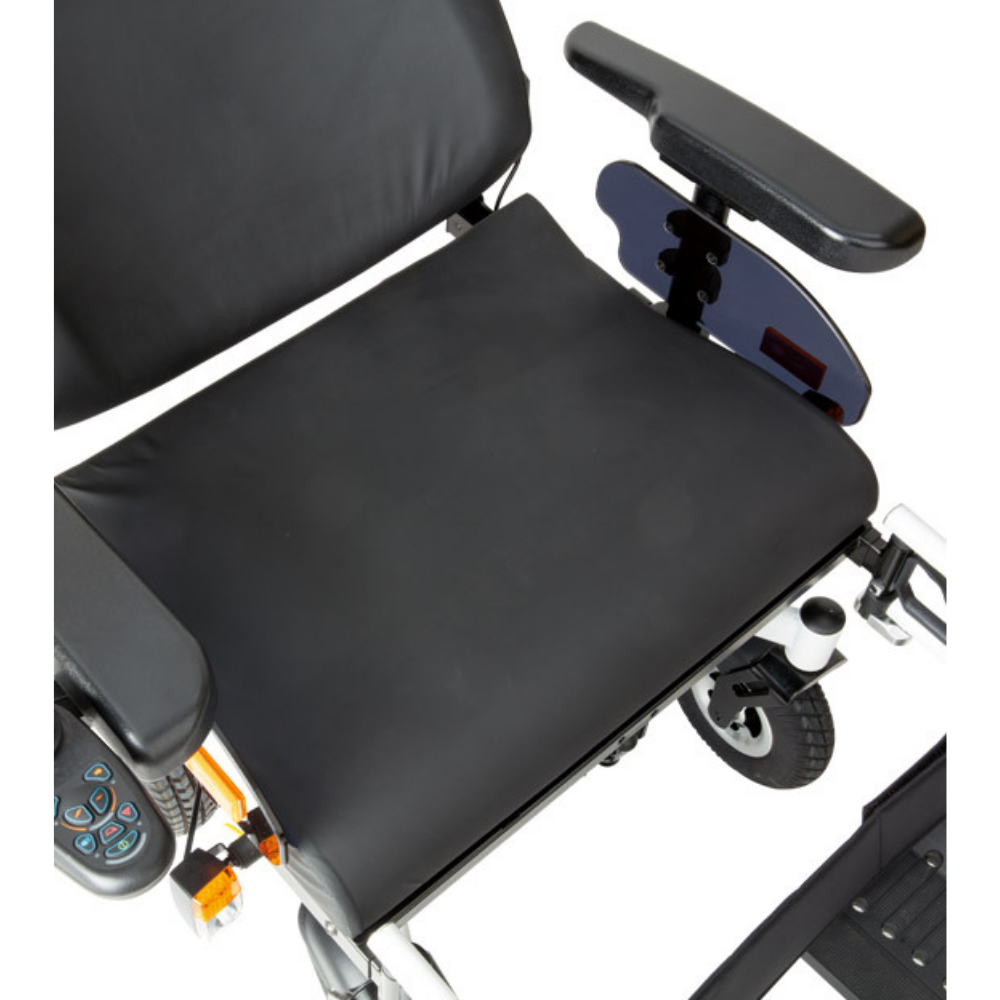

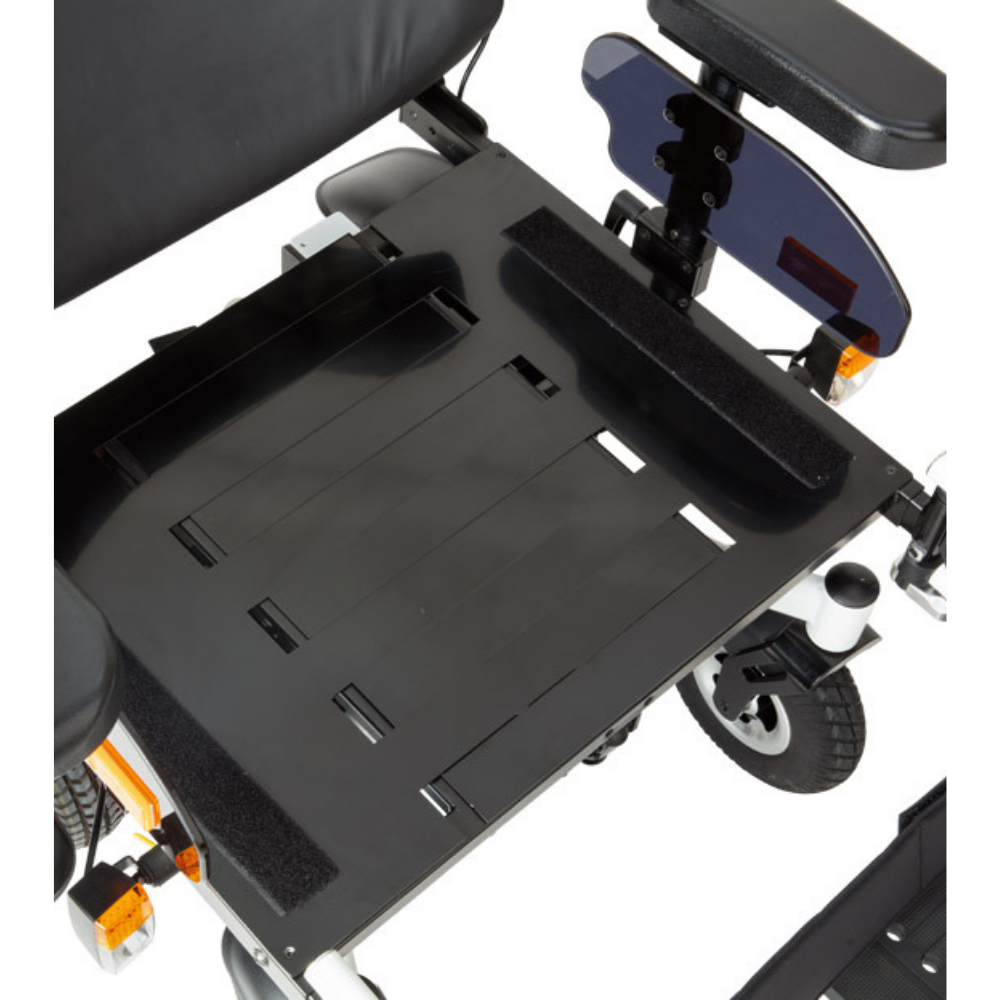

- The telescopic seating system ensures flexible seat width adjustment and increases comfort.
- For comfortable entry and exit, the legrests can be swung away.
- With anti-tip wheels and StVZO-compliant lighting, you are always safe on the go.
Operating Manual Electric Wheelchair Ejoy RD XXL
Brochure Electric Wheelchair Ejoy RD XXL
Technical Data
| Feature |
Specification |
| Unladen weight |
108 kg |
| Overall width |
76 – 98 cm |
| Overall length |
112.5 cm |
| Overall height |
96 – 109 cm |
| User weight |
up to 250 kg |
| Speed |
6 km/h |
| Range |
approx. 35 km |
| Motor |
2 × 24 V / 450 W |
| Max. incline |
8° / 14 % |
| Frame color |
White |
Equipment
Tires / Chassis
| Equipment |
Details |
| Rear wheel |
14″ PU |
| Front wheel |
9″ PU |
| Suspension |
rear with independent suspension |
| Wheel splash guard |
front and rear |
| Drive |
rear-wheel drive |
| Battery capacity |
2x12V / 80Ah |
| Charger |
24V / 8A |
Seating Unit
| Equipment |
Details |
| Frame |
Aluminum frame |
| Backrest |
Adjustable backrest |
| Seating system |
Telescopic |
| Seat cushion |
5 cm |
| Seat angle |

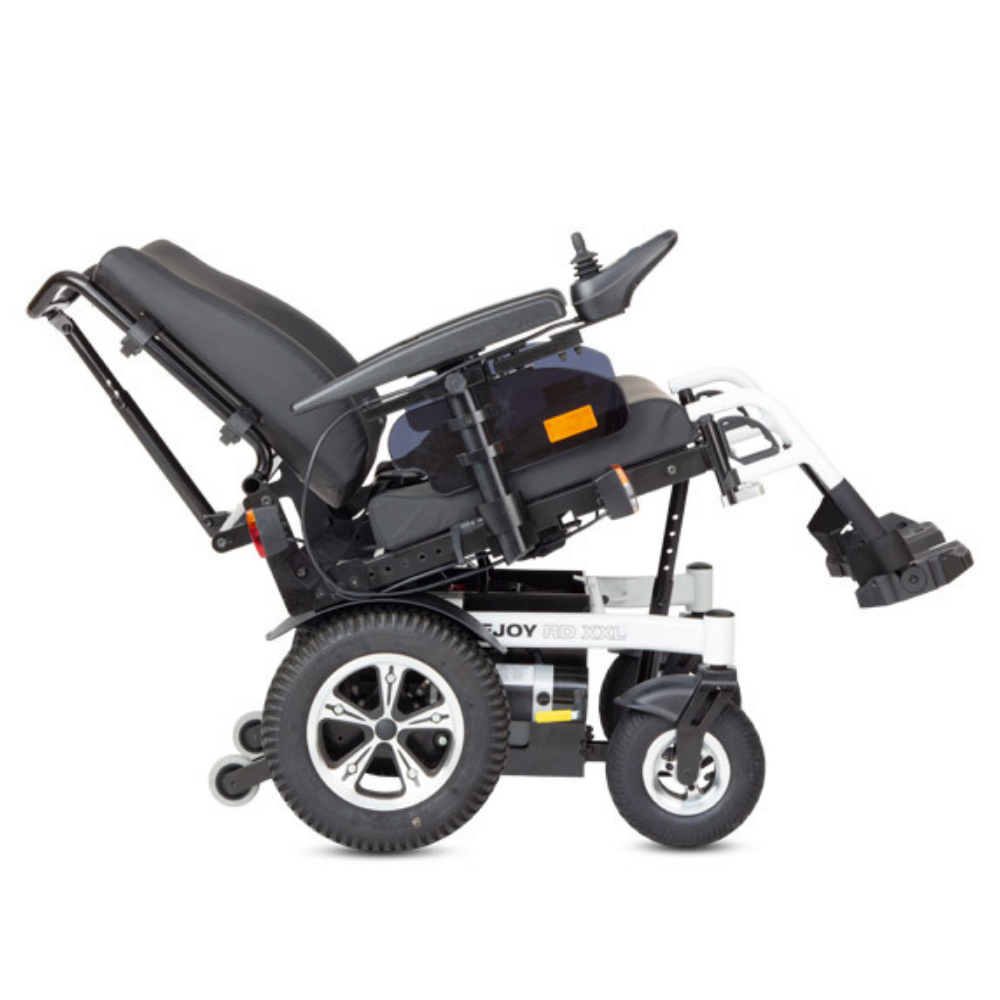

Adjustable |
| Backrest angle |
Adjustable |
| Side panels |
Height and width adjustable |
| Legrests |
Swing in and out |
| Footplates |
Foldable and angle adjustable |
| Safety |
Safety belt |
Miscellaneous
| Equipment |
Details |
| Control panel |
Mountable on both sides |
| Control panel adjustable |
Height, length, and swing adjustable |
| Control |
PG Drive R-Net |
| Anti-tip wheels |
Present |
| Lighting |
StVZO compliant |
