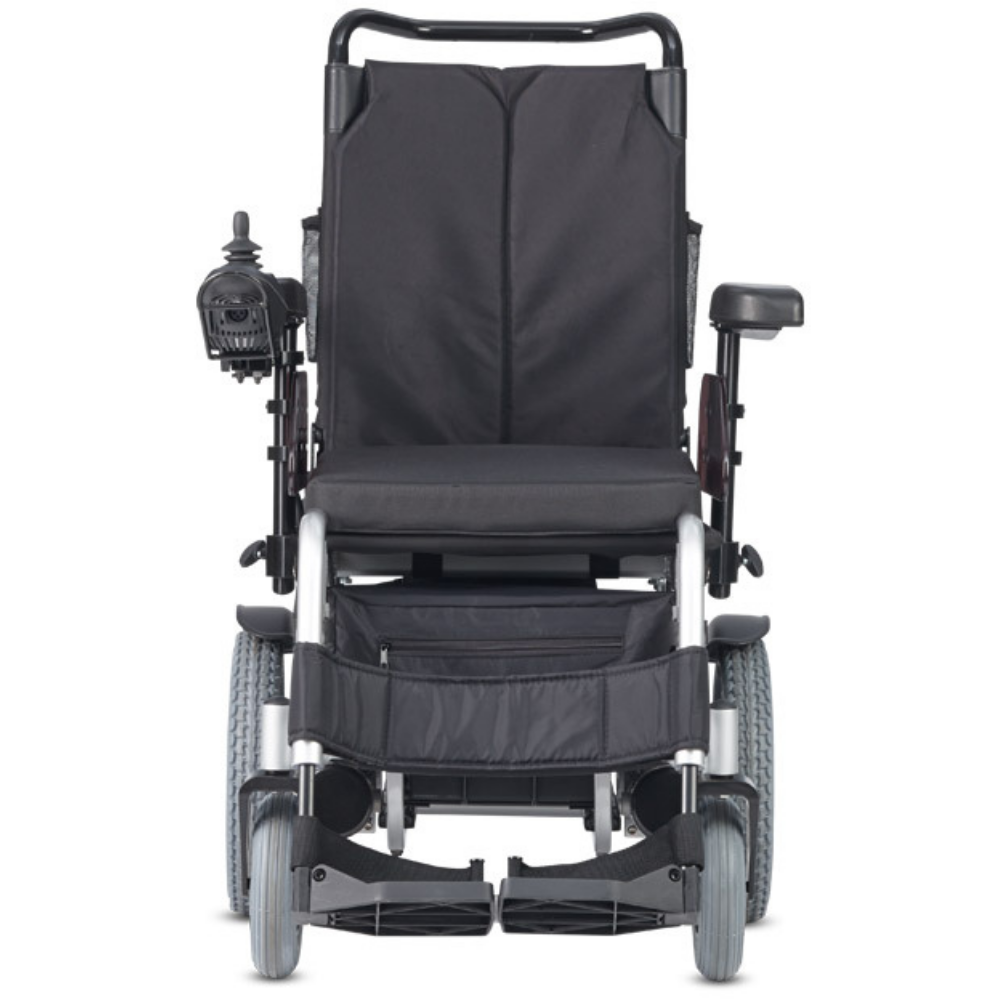

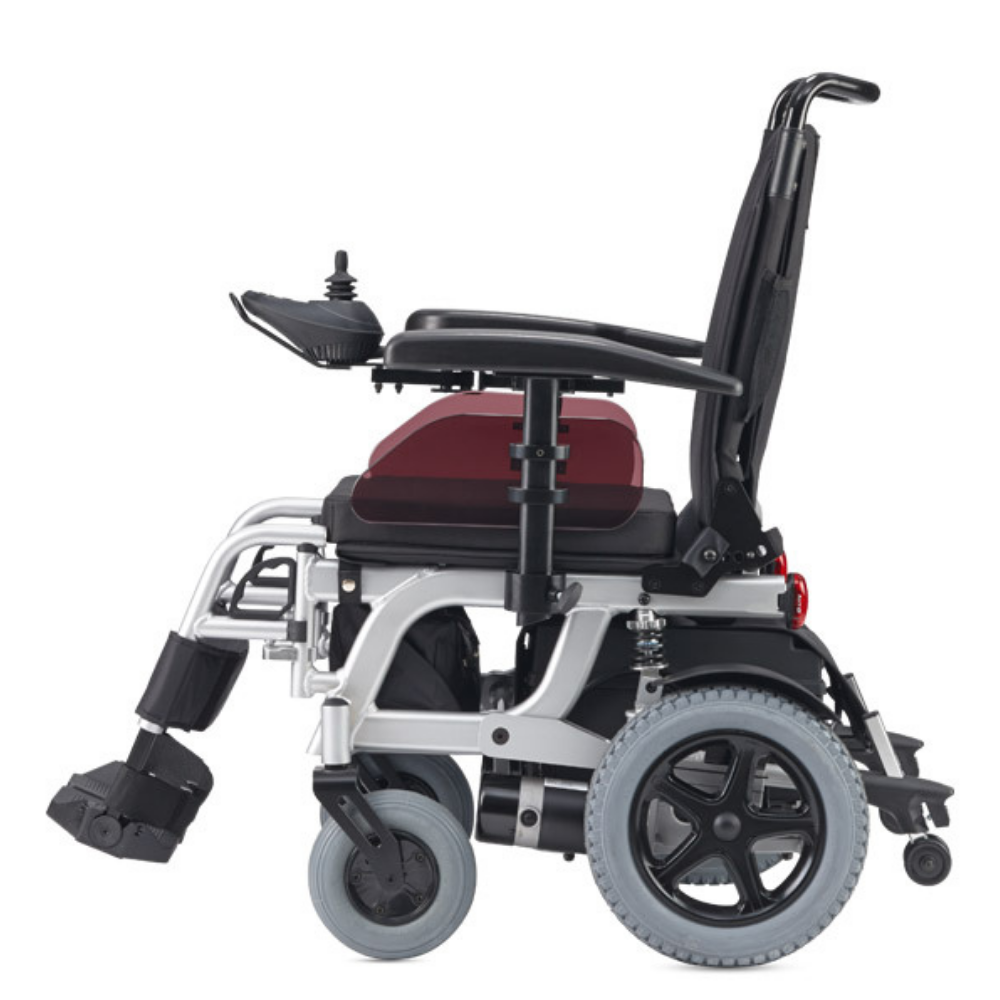

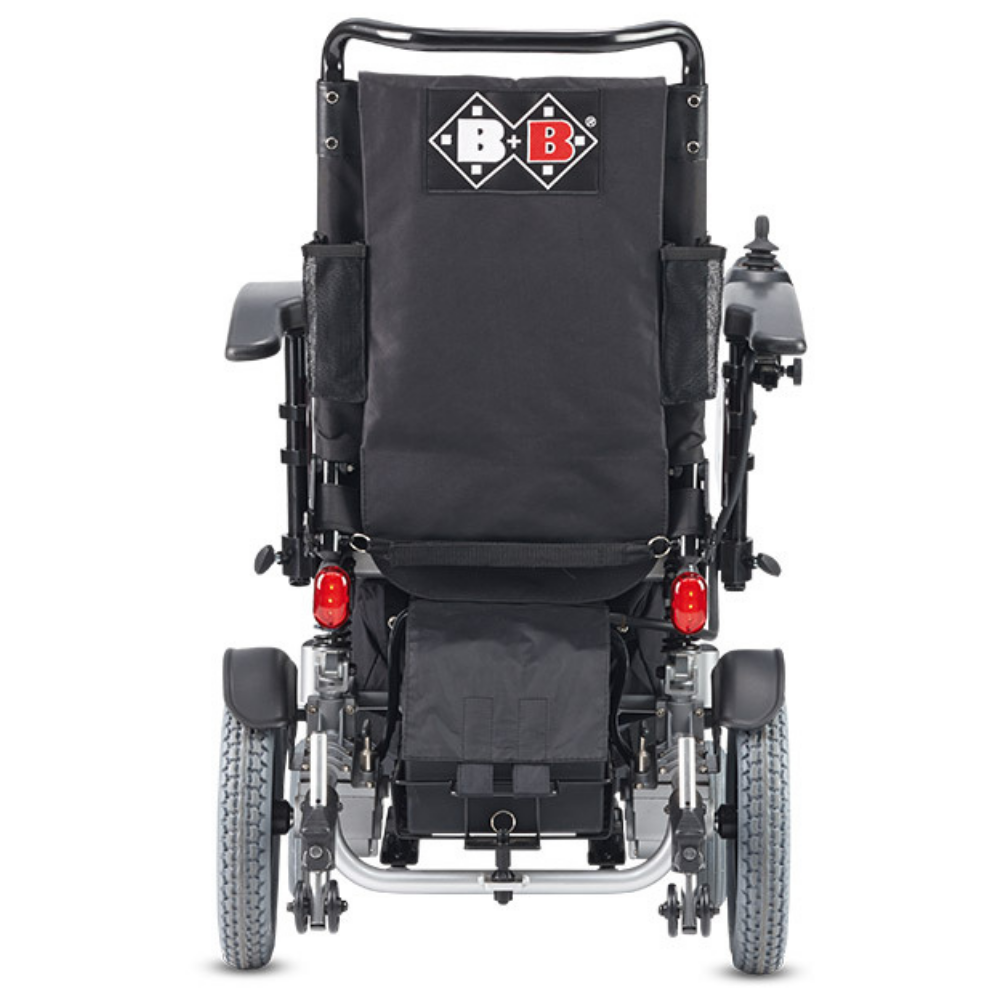

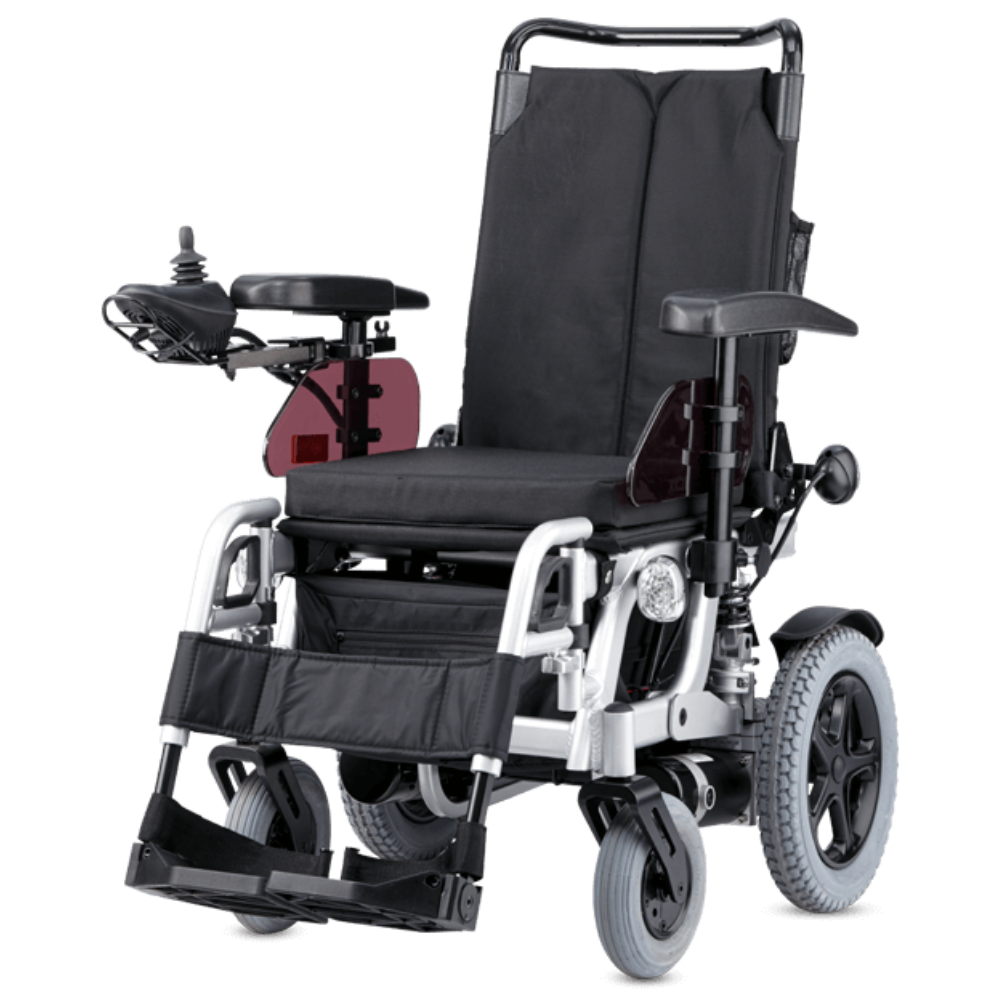

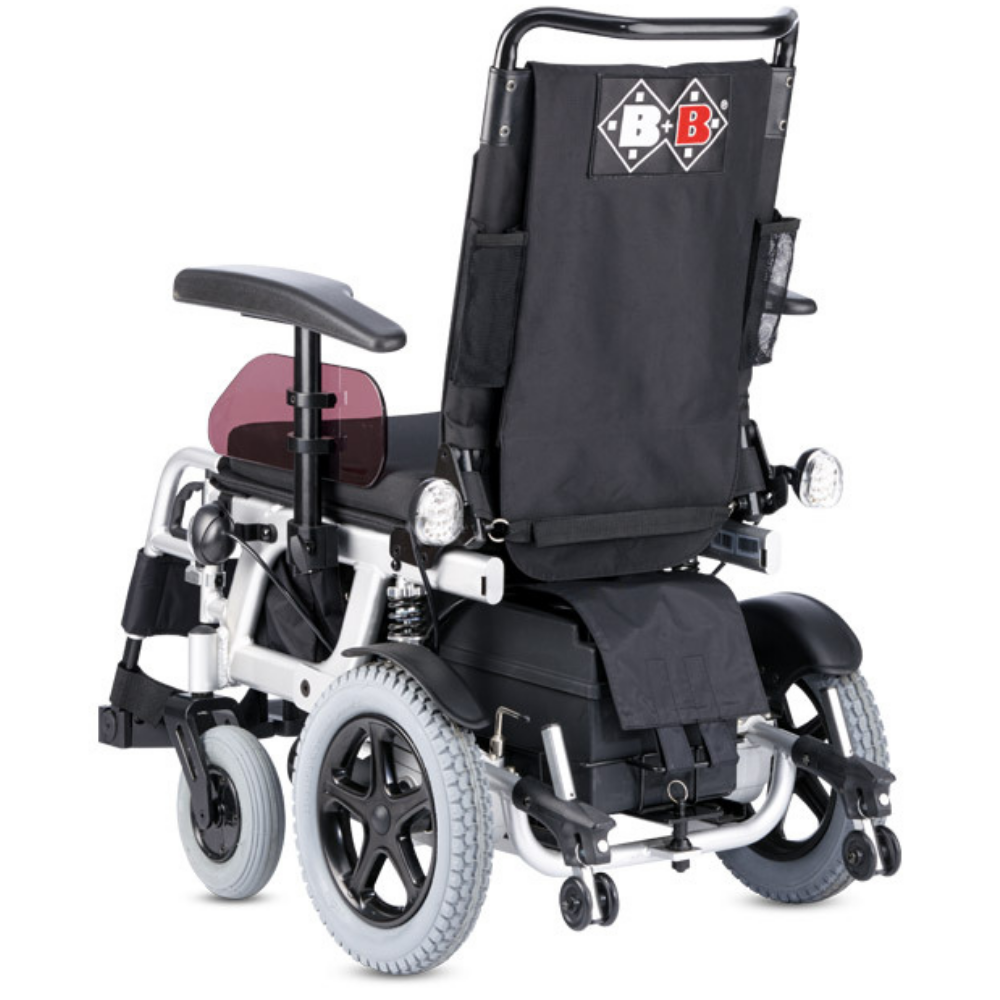

Electric wheelchair Eltego 6km/h

Eltego – The Standard Model

• Compact and agile – ideal for indoor use and within living environments.
• Safe on the go thanks to rear-wheel drive, suspension, and anti-tip wheels.
• Perfect for everyday use with a range of approx. 25 km.
• Puncture-proof PU tires ensure worry-free driving without flats.
• Reliably handles slopes up to 8° (14%).
• Easy to operate with the PG Drive VSI control panel, adjustable and pivotable.
• Individually customizable through an adaptable backrest, adjustable side panels, and backrest angle.
• Comfortable entry and exit thanks to pivotable leg rests.
• More comfort through a 5cm seat cushion and safety belt for secure hold.
• Loadable up to 120 kg – a reliable companion for every day.

Operating Instructions Electric Wheelchair Eltego

Technical Data

Feature	Specification
Empty Weight	74.5 kg
Overall Width	60 cm
Overall Length	105 cm
Overall Height	104 cm
User Weight	up to 120 kg
Speed	6 km/h
Range	approx. 25 km
Motor	2 × 24 V / 250 W
Slope	8° / 14 %
Color	Silver

Features

Tires / Chassis

Feature	Details
Front Wheel	8″
Rear Wheel	12.5″
Tires	puncture-proof PU tires

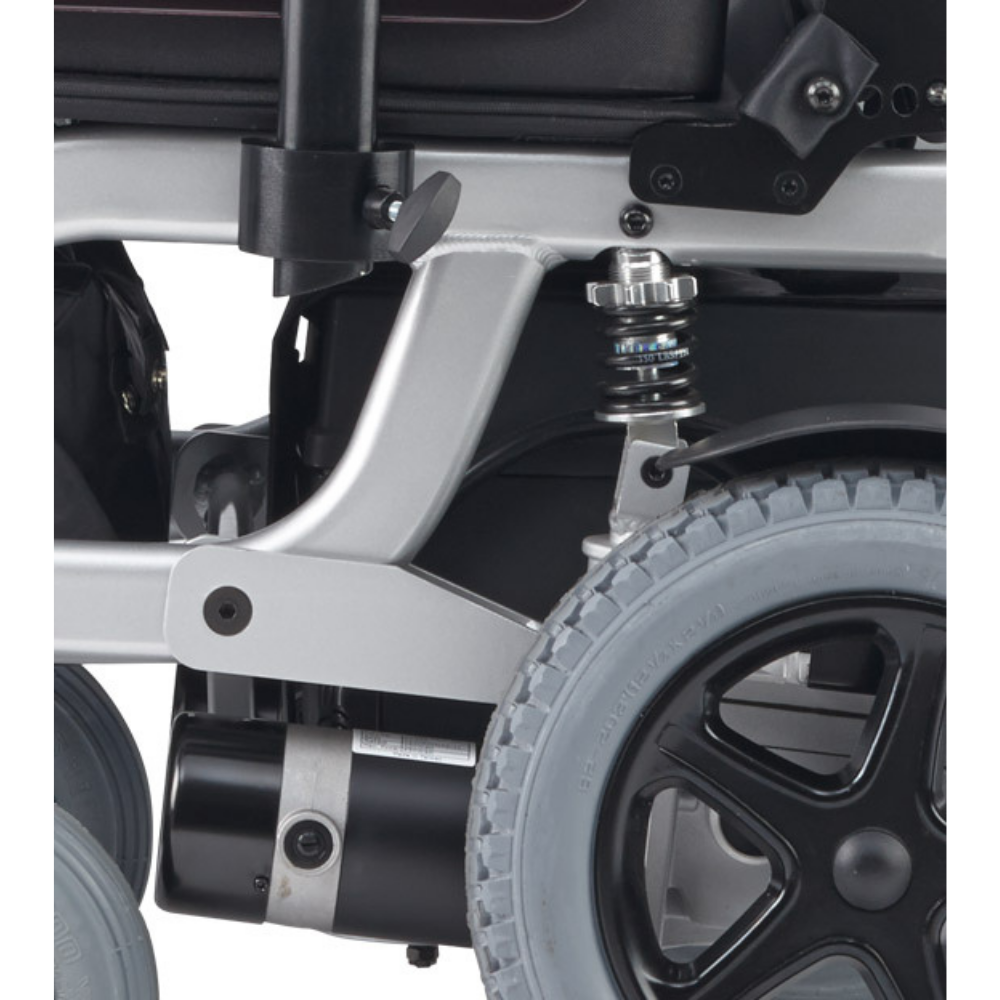

Suspension	rear with independent wheel suspension
Wheel Splash Guard	rear
Drive	rear-wheel drive
Battery Capacity	2x12V / 55Ah
Charger	24V / 5A

Seat Unit

Feature	Details
Frame	Aluminum frame
Backrest	adaptable backrest
Seat Width	adjustable
Backrest Angle	adjustable
Side Panels	height and width adjustable
Leg Rests	pivotable
Footplates	angle adjustable
Seat Cushion	5cm
Safety Belt	included
Heel Straps	included

Miscellaneous

Feature	Details

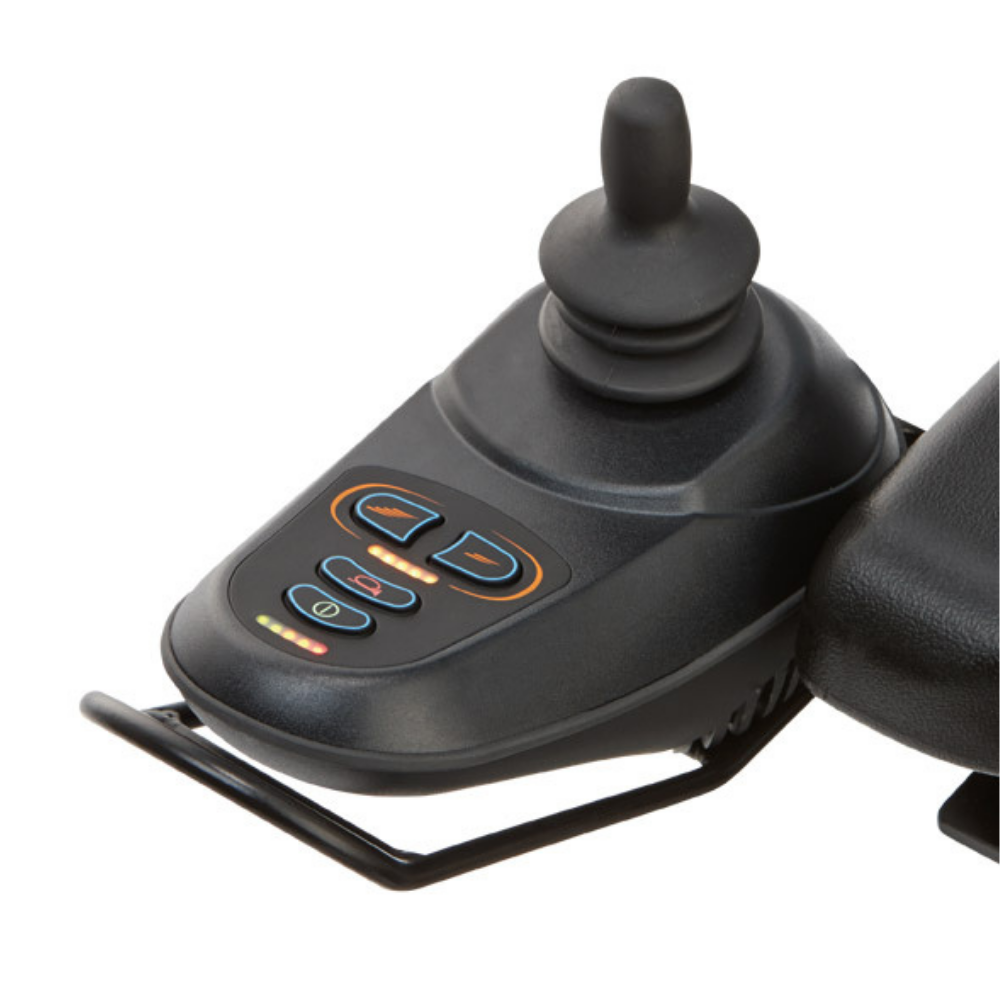

Control Panel	PG Drive VSI
Control Panel Adjustable	pivotable, height and length adjustable
Control Panel Mounting	mountable on both sides
Lighting	according to StVZO (German Road Traffic Licensing Regulations)
Anti-Tip Wheels	included

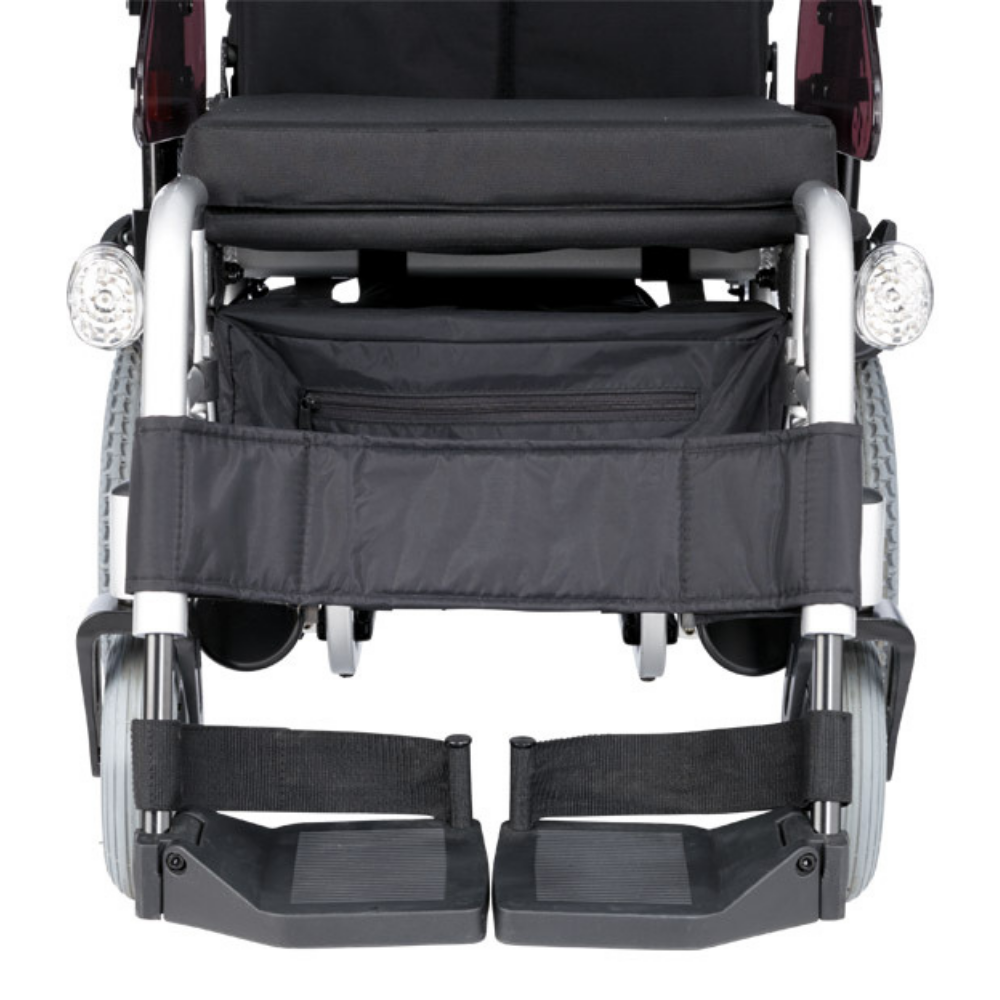

Bag	detachable under the seat
Tool Kit	included
